7V5647 Switch As- Limit — Cat 769C

This limit switch is an electrical component that detects the end-of-travel position for mechanical components within a machine's system. It functions by opening or closing an electrical circuit when a specific physical limit is reached, signaling the control system to stop or alter movement. Failure of this switch can result in over-travel damage to components or the inability of a system to operate correctly, manifesting as a machine fault code or unresponsive function.

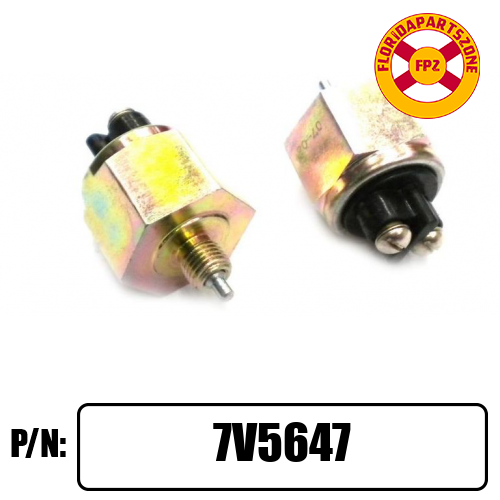

Switch As- Limit – Part No 7V5647 – CAT Spare Part
Part Specifications
BrandCAT
CategoryElectrical Parts
ConditionAftermarket — OEM Specification
DispatchSame-day from Mumbai (before 3 PM IST)
GST InvoiceAvailable — all orders
Export DocsCommercial invoice, packing list, COO

Compatible Models

Always verify with serial number before ordering.

WhatsApp for Price & Availability☎ Call Mumbai Office

Parts Trading Company  ·  Mumbai, Est. 1956  ·  Same-day dispatch  ·  Ships worldwide  ·  GST invoice included

PM IST.', };
