2418368 Switch Gp- Magnetic — Cat 1090 1190

This magnetic switch group is a vital electrical component that acts as a simple on/off switch, typically activated by the presence or absence of a magnetic field, often used for safety interlocks or position sensing. Manufactured to meet stringent quality standards, it provides reliable switching performance and durability compared to a worn or damaged switch that may fail to activate or deactivate. Operators may experience issues with machine starting, safety interlocks not engaging, or warning lights staying illuminated when this magnetic switch fails to operate correctly.

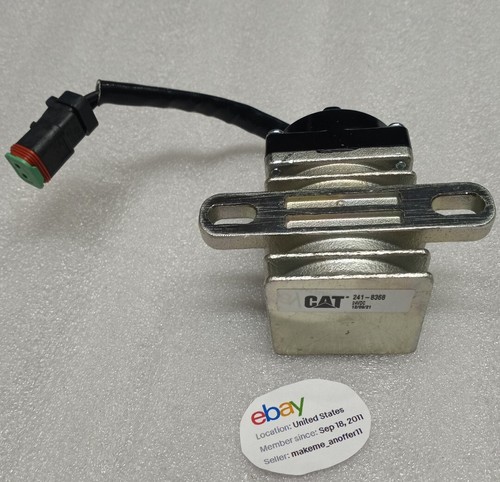

Switch Gp- Magnetic – Part No 2418368 – CAT Spare Part
Part Specifications
BrandCAT
CategoryElectrical Parts
ConditionAftermarket — OEM Specification
DispatchSame-day from Mumbai (before 3 PM IST)
GST InvoiceAvailable — all orders
Export DocsCommercial invoice, packing list, COO

Compatible Models

Always verify with serial number before ordering.

WhatsApp for Price & Availability☎ Call Mumbai Office

Parts Trading Company  ·  Mumbai, Est. 1956  ·  Same-day dispatch  ·  Ships worldwide  ·  GST invoice included

};

Related CAT Parts

From the same category — may also be needed

RE22744
Fuel Shut Off Solenoid
3086335
Motor Gp- Electric
3943496
Electrical Parts Component
1135314
Gauge Gp-Fuel Level
1090267
Sensor As- Speed
1729973
24V

Browse all CAT Electrical Parts →

Ship This Part To Your Location

DubaiSaudi ArabiaNigeriaKenyaSouth AfricaBangladeshMalaysiaGhanaQatarEgypt
India
MaharashtraGujaratTamil NaduRajasthanKarnatakaTelangana

Full shipping information on regional pages · Air freight 2–12 days · GST invoice for India

Installation & Application Notes

Disconnect main battery before working on electrical components. Use dielectric grease on all connector pins. Check ground connections — most electrical faults trace to poor grounds. Test with multimeter before installing new parts.

Always consult the OEM service manual for model-specific torque values and procedures. WhatsApp our technical team if you need fitment guidance.

Part TypeMagnetic Switch Group
MaterialPlastic and metal
ApplicationSafety interlocks, position sensing
Service LifeReplace as needed based on function
CompatibilityOEM specification
ConditionNew — CTP aftermarket replacement

Failure Symptoms

The first indication of a failing magnetic switch is often the failure of the associated system to operate, such as a safety interlock not engaging or a position not being detected. If ignored, this can lead to the machine being inoperable or operating with safety features bypassed. The worst consequence is the potential for unintended machine operation or the bypass of critical safety systems, increasing operational risk.

Installation Tip

Ensure the mounting surface is clean and free of any magnetic interference before installing the new switch. Double-check the wiring connections to ensure they are secure and correctly matched to the machine's harness.

Service Note

When replacing a magnetic switch, it is good practice to inspect the associated wiring harness and connectors for any signs of damage or corrosion.
