241-8368-2418368 Magnetic Switch Assy 241 8368 — Cat

This is a magnetic switch assembly, functioning as a sensor to detect the position or presence of a component, typically used in control or safety circuits. It is manufactured to meet CAT's rigorous standards, providing reliable actuation unlike a worn switch that may stick or fail to engage. Operators might experience system malfunctions, error codes, or the equipment failing to start or operate when this switch is faulty.

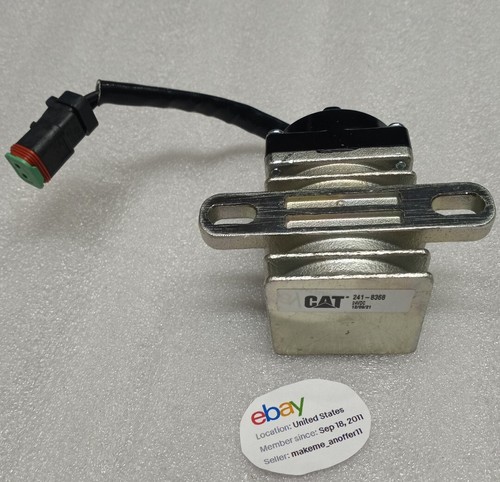

Magnetic Switch Assy 241 8368 – Part No 241-8368-2418368 – CAT Spare Part
Part Specifications
BrandCAT
CategoryElectrical Parts
ConditionAftermarket — OEM Specification
DispatchSame-day from Mumbai (before 3 PM IST)
GST InvoiceAvailable — all orders
Export DocsCommercial invoice, packing list, COO

Compatible Models

Always verify with serial number before ordering.

WhatsApp for Price & Availability☎ Call Mumbai Office

Parts Trading Company  ·  Mumbai, Est. 1956  ·  Same-day dispatch  ·  Ships worldwide  ·  GST invoice included

ipt>

Related CAT Parts

From the same category — may also be needed

3620288
Kit-Meter Service
8N0410
Switch Gp
417-7577
Front Head Lamp
1997952
Indicator- Converter Temp
3095768
Switch As- Pressure
2423519
24V 70W

Browse all CAT Electrical Parts →

Ship This Part To Your Location

DubaiSaudi ArabiaNigeriaKenyaSouth AfricaBangladeshMalaysiaGhanaQatarEgypt
India
MaharashtraGujaratTamil NaduRajasthanKarnatakaTelangana

Full shipping information on regional pages · Air freight 2–12 days · GST invoice for India

Installation & Application Notes

Disconnect main battery before working on electrical components. Use dielectric grease on all connector pins. Check ground connections — most electrical faults trace to poor grounds. Test with multimeter before installing new parts.

Always consult the OEM service manual for model-specific torque values and procedures. WhatsApp our technical team if you need fitment guidance.

Part TypeMagnetic Switch Assembly
MaterialSteel, Magnet, Electrical Components
ApplicationControl and safety circuits
Service LifeReplace every 4,000 hrs or 2 years
CompatibilityOEM specification
ConditionNew — OEM specification aftermarket

Failure Symptoms

Initial symptoms may include intermittent operation of the associated system or false activation/deactivation signals. If the switch fails completely, the system it controls will cease to function, potentially preventing equipment operation. This can lead to downtime and missed production targets.

Installation Tip

Ensure the magnetic actuator and the switch housing are properly aligned according to the service manual specifications before securing the assembly. Do not use excessive force when connecting electrical terminals, as this can damage the pins or the switch housing.

Service Note

Inspect the wiring and connectors associated with the magnetic switch for any signs of wear, damage, or corrosion during replacement.
